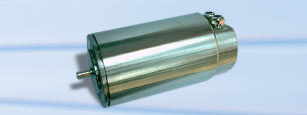

RSG 10 R
Inkremental encoder in a stainless steel case
Ø 100 mm
data sheet PDF

operating voltage UB 5 V or 10...30 VDC
current consumption 60...200 mA
pulse / turn up to 100.000
output driver 5 V Line-driver or push pull
pulse frequency up to 4 MHz
output signal A, B, N + inverted
operating temperature   20... + 80° C
- 42...+ 110° C
speed
6.000 min -1
protection type IP 67
highlights extreme high bearing demand
Top

RSG 10 T
single-turn encoder
in a stainless steel case
data sheet PDF

operating voltage 10...30 VDC
resolution 12 or 13 Bit
steps/turns 4.096 or 8.192
turn 1
code gray, binary
interface SSI
current consumption Max. 50 mA (w/o load)
speed
10.000 min -1
protection type IP 67
highlights extreme high bearing demand
Top

RSG 10 M
multi-turn encoder
in a stainless steel case
data sheet PDF

operating voltage 10...30 VDC
resolution 24 Bit or 25 Bit
steps/turns 4.096 or 8.192
turn 4.096
code gray, binary
interface SSI
current consumption Max. 50 mA (w/o load)
speed
10.000 min -1
protection type IP 67
highlights extreme high bearing demand
Top

RSG 10 C
multi-turn encoder
PC programmable in a stainless steel case
data sheet PDF

operating voltage 10...30 VDC
resolution 25 Bit
steps/turns 8.192
turn 4.096
code gray, binary
interface SSI
current consumption Max. 80 mA (w/o load)
speed
10.000 min -1
protection type IP 67
highlights extreme high bearing demand
Top

RSG 10 N
electronic cam controller with 16 outputs in a stainless steel case
data sheet PDF

operating voltage 10...30 VDC
resolution 24 Bit
steps/turns 4.096
turn 4.096
Ausgänge 20 mA
interface 16 parallel
current consumption Max. 50 mA (w/o load)
speed
10.000 min -1
protection type IP 67
highlights PC programmable
Top

RSG 10 P02 Profibus DP
multi-turn encoder
in a stainless steel case
data sheet PDF

operating voltage 10...30 VDC
resolution 25 Bit
steps/turns 8.192
turn 4.096
code binary
interface Profibus DP
current consumption Max. 100 mA (w/o load)
speed
10.000 min -1
protection type IP 67
highlights extreme high bearing demand
Top

RSG 10 FP Profibus DP
single/multi-turn encoder
in a stainless steel case
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 31 Bit
steps/turns 1.024 up to 262.144
turn 1 up to 65.536
code binary
interface Profibus DP
current consumption Max. 120 mA (w/o load)
speed
10.000 min -1
protection type IP 67
highlights extreme high bearing demand
Top

Encoder in a stainless steel case are also as double- und triplesystems available. Incremental, absolut or bussystems, Combinationen were as a basic principle possible.
