RSR 58
Incremental encoder
Ø 58 mm
data sheet PDF

operating voltage UB 5 V or 10...30 VDC
current consumption 60...200 mA
pulse / turn up to 100.000
output driver 5 V Line-driver or push-pull
pulse frequency up to 4 MHz
output signal A, B, N + inverted
operating temperature - 20... + 80° C
- 42...+ 110° C
speed
12.000 min -1
protection type IP 65
highlights with high resolution
Top

RSR 80
Twin-encoder with different pulse-numbers
Ø 80 mm
data sheet PDF

operating voltage UB 5 V or 10...30 VDC
current consumption 60...200 mA
pulse / turn up to 9.000 track 2 up to 6.500
output driver 5 V Line-driver or push-pull
pulse frequency up to 4 MHz
output signal A, B, N + inverted
operating temperature     0... + 80° C
- 42...+ 110° C
speed
12.000 min -1
protection type IP 65
highlights two independent systems
Top

RSL 58
hollow shaft encoder, not persistent
hollow shaft 12 mm
Ø 58 mm
data sheet PDF

operating voltage UB 5 V or 10...30 VDC
current consumption 60...200 mA
pulse / turn up to 10.000
output driver 5 V Line-driver or push-pull
pulse frequency up to 4 MHz
output signal A, B, N + inverted
operating temperature     0... + 80° C
- 42...+ 110° C
speed
6.000 min -1
protection type Max. IP 65
highlights small mountdimension
Top

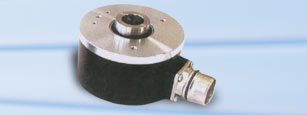

RSH 58
hollow shaft encoder, continuous hollow shaft
6 bis 12 mm
Ø 58 mm
data sheet PDF

operating voltage UB 5 V or 10...30 VDC
current consumption 60...200 mA
pulse / turn up to 10.000
output driver 5 V Line-driver or push-pull
pulse frequency up to 4 MHz
output signal A, B, N + inverted
operating temperature     0... + 80° C
- 42...+ 110° C
speed
6.000 min -1
protection type Max. IP 65
highlights hollow shaft up to 16 mm
Top

RSH 76
hollow shaft encoder, continuous hollow shaft up to 27 mm
Ø 76 mm
data sheet PDF

operating voltage UB 5 V or 10...30 VDC
current consumption 60...200 mA
pulse / turn up to 10.000
output driver 5 V Line-driver or push-pull
pulse frequency up to 4 MHz
output signal A, B, N + inverted
operating temperature     0... + 80° C
- 42...+ 110° C
speed
10.000 min -1
protection type Max. IP 65
highlights hollow shaft up to 27 mm
Top

RSH 120
hollow shaft encoder, continuous hollow shaft up to 55 mm
Ø 120 mm
data sheet PDF

operating voltage UB 5 V or 10...30 VDC
current consumption 60...200 mA
pulse / turn up to 10.000
output driver 5 V Line-driver or push-pull
pulse frequency up to 4 MHz
output signal A, B, N + inverted
operating temperature - 20... + 80° C
- 42...+ 110° C
speed
4.000 min -1
protection type IP 64
highlights hollow shaft up to 55 mm
Top

Encoder in a stainless steel case are also as double- und triplesystems available. Incremental, absolut or bussystems, Combinationen were as a basic principle possible.
