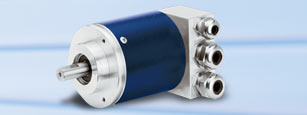

RSP 02 58 Profibus DP
multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 25 Bit
steps/turns 8192
turn 4096
code binary
interface Profibus DP
current consumption Max. 100 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system,
rotational speed output
Top

RSH 75 P Profibus DP
multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 25 Bit
steps/turns 8.192
turn 4.096
code binary
interface Profibus DP
current consumption max. 100 mA (w/o load)
speed
6.000 min -1
protection type Max. IP 54
highlights on-board diagnosis system,
rotational speed output
Top

RSF 58 P Profibus DP
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 29 Bit
steps/turns 1.024 or 8.192
turn 1 or 65.536
code binary
interface Profibus DP
current consumption Max. 100 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system,
rotational speed output
Top

RSF 59 P Profibus DP
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 18 or 31 Bit
steps/turns 262.144
turn 1 or 8.192
code binary
interface Profibus DP
current consumption Max. 120 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system,
rotational speed output
Top

RSHF 75 P Profibus DP
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 29 Bit
steps/turns 1.024 or 8.192
turn 1 or 65.536
code binary
interface Profibus DP
current consumption Max. 100 mA (w/o load)
speed
6.000 min -1
protection type Max. IP 54
highlights on-board diagnosis system,
rotational speed output
Top

RSF 58 C CAN-Bus
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 29 Bit
steps/turns 1.024 or 8192
turn 1 or 65.536
code binary
interface CAN-Bus
current consumption Max. 100 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system
Top

RSF 59 C CAN Bus
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 18 or 31 Bit
steps/turns 262.144
turn 1 or 8.192
code binary
interface CAN-Bus
current consumption Max. 120 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system
Top

RSHF 75 C CAN Bus
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 29 Bit
steps/turns 1.024 or 8.192
turn 1 or 65.536
code binary
interface CAN-Bus
current consumption Max. 100 mA (w/o load)
speed
6.000 min -1
protection type Max. IP 54
highlights on-board diagnosis system
Top

RSF 58 Co CANopen
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 29 Bit
steps/turns 1.024 or 8.192
turn 1 or 65.536
code binary
interface CANopen
current consumption Max. 100 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system
Top

RSF 59 Co CANopen
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 18 or 31 Bit
steps/turns 262.144
turn 1 or 8.192
code binary
interface CANopen
current consumption Max. 120 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system
Top

RSHF 75 Co CANopen
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 29 Bit
steps/turns 1.024 up to 8.192
turn 1 or 65.536
code binary
interface CANopen
current consumption Max. 100 mA (w/o load)
speed
6.000 min -1
protection type Max. IP 54
highlights on-board diagnosis system
Top

RSF 58 D DeviceNET
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 29 Bit
steps/turns 1.024 or 8.192
turn 1 or 65.536
code binary
interface DeviceNet
current consumption Max. 100 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system
Top

RSF 59 D DeviceNET
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 18 or 31 Bit
steps/turns 262.144
turn 1 or 8.192
code binary
interface DeviceNet
current consumption Max. 120 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system
Top

RSHF 75 D DeviceNET
single/multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 10 up to 29 Bit
steps/turns 1.024 or 8.192
turn 1 or 65.536
code binary
interface DeviceNet
current consumption Max. 100 mA (w/o load)
speed
6.000 min -1
protection type IP 54
highlights on-board diagnosis system
Top

RSI 58 Interbus S
multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 25 Bit
steps/turns 8.192
turn 4.096
code binary
interface Interbus S
current consumption Max. 60 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights parametrizable
Top

Encoder in a stainless steel case are also as double- und triplesystems available. Incremental, absolut or bussystems, Combinationen were as a basic principle possible.
