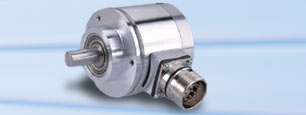

RST 58 SSI
single-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 12 or 13 Bit
steps/turns 4.096 or 8.192
turn 1
code gray, binary
interface SSI
current consumption max. 50 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system
Top

RST 59 SSI
single-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 18 Bit
steps/turns 262.144
turn 1
code gray, binary
interface SSI
current consumption max. 80 mA (w/o load)
speed
10.000 min -1
protection type Max. IP 65
highlights with high resolution
Top

RSTH 59
single-turn encoder, not persistent hollow shaft 12 mm
data sheet PDF

operating voltage 10...30 VDC
resolution 18 Bit
steps/turns 262.144
turn 1
code gray, binary
interface SSI
current consumption max. 80 mA (w/o load)
speed
10.000 min -1
protection type Max. IP 64
highlights with high resolution
Top

RSM 58 SSI
multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 24 or 25 Bit
steps/turns 4.096 or 8.192
turn 4.096
code gray, binary
interface SSI
current consumption max. 50 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights on-board diagnosis system
Top

RSH 75 M SSI
multi-turn encoder,
hollow shaft 12 bis 50,8 mm
data sheet PDF

operating voltage 10...30 VDC
resolution 24 or 25 Bit
steps/turns 4.096 or 8.192
turn 4.096
code gray, binary
interface SSI
current consumption max. 50 mA (w/o load)
speed
6.000 min -1
protection type IP 54
highlights on-board diagnosis system
Top

RSM 59 SSI
multi-turn encoder
data sheet PDF

operating voltage 10...30 VDC
resolution 36 Bit
steps/turns 262.144
turn 262.144
code gray, binary
interface SSI
current consumption max. 80 mA (w/o load)
speed
10.000 min -1
protection type IP 64
highlights with high resolution
Top

RSMH 59 SSI
multi-turn encoder; not persistent hollow shaft 12 mm
data sheet PDF

operating voltage 10...30 VDC
resolution 36 Bit
steps/turns 262.144
turn 262.144
code gray, binary
interface SSI
current consumption max. 80 mA (w/o load)
speed
10.000 min -1
protection type IP 64
highlights with high resolution
Top

RSC 58 SSI
multi-turn encoder, PC programmable
data sheet PDF

operating voltage 10...30 VDC
resolution 25 Bit
steps/turns 8.192
turn 4096
code gray, binary
interface SSI
current consumption max. 50 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights additional RS 232
Top

RSH 75 C
multi-turn encoder, PC programmable
data sheet PDF

operating voltage 10...30 VDC
resolution 25 Bit
steps/turns 8.192
turn 4096
code gray, binary
interface SSI
current consumption max. 50 mA (w/o load)
speed
6.000 min -1
protection type Max. IP 65
highlights additional RS 232
Top

RSE 58 SSI
single/multi-turn encoder,
PC programmable
data sheet PDF

operating voltage 10...30 VDC
resolution 10 bis 29 Bit
steps/turns 1.024 bis 8.192
turn 1 or 65.536
code gray, binary
interface SSI
current consumption max. 100 mA (w/o load)
speed
10.000 min -1
protection type IP 64
highlights additional RS 232
Top

RSE 59 SSI
single/multi-turn encoder,
PC programmable
data sheet PDF

operating voltage 10...30 VDC
resolution 18 bis 31 Bit
steps/turns 262.144
turn 1 or 8.192
code gray, binary
interface SSI
current consumption max. 100 mA (w/o load)
speed
10.000 min -1
protection type IP 64
highlights additional RS 232
Top

RSN 58
electronic cam controller with 16 outputs
data sheet PDF

operating voltage 10...30 VDC
resolution 24 Bit
steps/turns 4.096
turn 4.096
Ausgänge 20 mA
interface 16 parallel
current consumption max. 50 mA (w/o load)
speed
10.000 min -1
protection type IP 65
highlights PC programmable
Top

Encoder in a stainless steel case are also as double- und triplesystems available. Incremental, absolut or bussystems, Combinationen were as a basic principle possible.
