RSW cable pull
up to 30 m
data sheet PDF


Robust cable pull for rotational Encoder
or with analog output.

Options: stainless steel case, consolidated spring packet.

Top

RS SPM
Wandlerelektronik
SSI auf bitparallele Werte
data sheet PDF

operating voltage 11...32 VDC
current consumtion 250 mA
driving voltage 4,5...32 VDC
pulse frequency 100 kHz
Transducer < 400 µsec.
decelerating time store 30...70 µsec.
decelerating time enable 20...60 µsec.
max. cable length < 400 m
protection type IP 20
Top

RS AM 10
Display Module
data sheet PDF

operating voltage 10...30 VDC
current consumtion 300 mA
Encoder supply 5 V 300 mA / 24 V
(seperatly screw terminal)
operating temperature 0...50° C
SSI evaluation pulse frequency 120 kHz
Monoflop time < 10 µs
Top

RS BSK
helix couplings
data sheet PDF

max. speed 8.000 U/min
max. torque 100/150 Ncm
max. radial offset 0,3 mm
max. axial offset 0,5 mm
Top

RS GEL
spring mounting couplings
data sheet PDF

max. speed 45.000 U/min
max. torque 220 Ncm
max. radial offset 0,7 mm
max. axial offset 0,8 mm
Top

RS SR 58
assembly ring aluminium for 58er encoder
data sheet PDF

Top

RS SR 10
assembly ring VA for encoder in a stainless steel case
data sheet PDF

Top

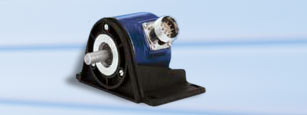

RS 58 H
angled mounting bracket for 58er clamping flange encoder
data sheet PDF

Top

RS 10 H
angled mounting bracket for RSG 10
data sheet PDF

Top

RS KA 21
12-core encoder cable
data sheet PDF


UV-decided, oil resistant, and trail cable able,
flame retardant and self-extinguishing.

Top

RS ST connector
and tool
data sheet PDF

Top
